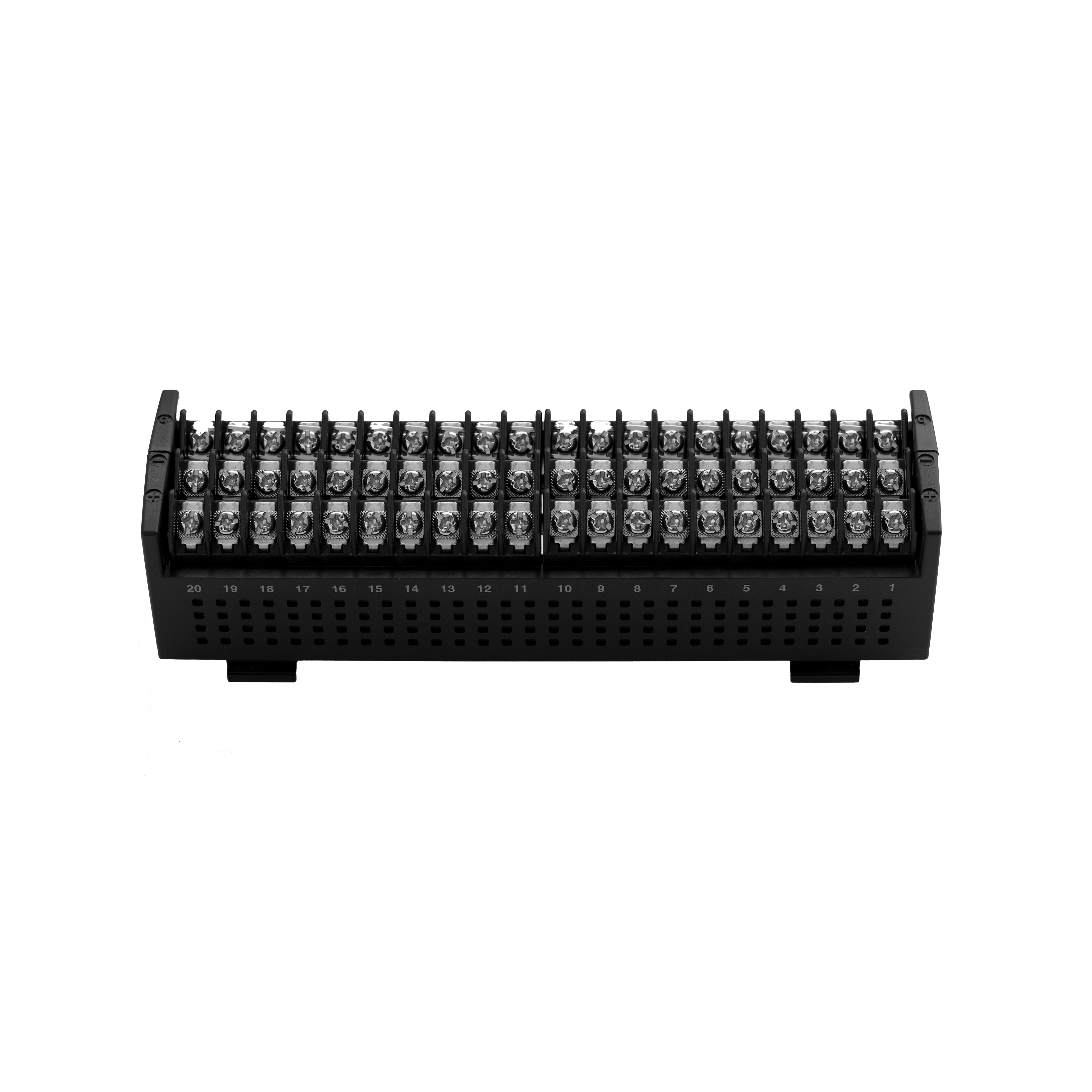

20-Channel Screw Input High Accuracy, High Isolation Terminal DCV, TC & RTD
| Number of input channels | 20ch |
| Input terminal type | M3 screw-type |
| Input method | Photo MOS relay scanning system |
| Voltage measurement ranges | 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, 1-5 V F.S |
| Temperature measurement ranges | Thermocouples: K, J, E, T, R, S, N, C (W:WRe5-26) |
| RTD(only 3 wire type is supported): Pt100, JPt100, Pt1000(IEC751) |
|
| Temperature range: 100°C, 500°C, 2000°C ( In the case of Fahrenheit: 150°F, 750°F, 3000°F | |
| Humidity measurement ranges | 0 to 100% (Optional humidity sensor B-530 is required) |
| Maximum permissible input voltage between +/- terminals | 20mV to 2V range(60Vp-p) 5V to 100mV range (110Vp-p) |
| Maximum permissible input voltage between input terminal/ input terminal | 600Vp-p |
| Maximum permissible input voltage between input terminal/ GND | 300Vp-p |
| Withstand Voltage between input terminal/ input terminal | 600Vp-p |
| Withstand Voltage between input terminal/ GND | 2300VACms 1 minute |
| Voltage measurement accuracy | ±(0.05%ofF.S + 10 |
| Operating environment | 0 to 45°C |
| Dimensions(* including GL860) | 240x166x52.5mm(exclude protrusion) |
| Weight(* including GL860) | 1035g(exclude AC adapter & battery |
